Combined Beacon Sounders

A range of combined beacon sounders from FHF. These hooters & sounders with strobe lights provide excellent optical and acoustic alarms or information signalling. Bulb, Xenon & LED options in a variety of voltages make these industrial beacon sounders & sounder strobes ideal for many applications.

HPL & HPOL- Mini Beacon Sounders

Mini hooter with light beacon as an optical and acoustical signal combination

High volume signalling hooter with approx. 95dB(A)

Application: dry and damp rooms (IP43)

Housing: impact resistant Thermoplastic (ABS)

Small and space saving construction

Different lens colours: red, amber

AC and DC versions available

HPL - with trumpet & has a 7 Watt Bulb (Ba 15 d)

HPLB - with trumpet & has a 1 jule Xenon Strobe

HPOL - without trumpet & has a 7 Watt Bulb (Ba 15 d)

HPOLB - without trumpet & has a 1 jule Xenon Strobe

DUO LED - Combined LED Beacon Sounder

The robust combined beacon sounder DUO LED is designed for use in emergency situations as a signalling device in general industrial applications and may be used both indoors and outside. Suitable for both wall and ceiling mounting but must be mounted in such a way that dust and water cannot settle in the bell mouth.

The DUO LED beacon sounder has a base made of seawaterproof cast aluminium and coated in plastic. The loudspeaker is made of impact and coldresistant plastic and is mounted firmly on the housing. The cap of the LED light forms the housing cover and is made of polycarbonate

Colours: red, amber, green, blue, clear
Protection: degree IP 66
Flash modes: Blinking, continous or flash mode

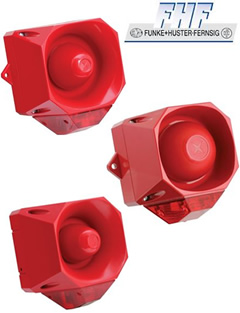

AXL - Combined Alarm Beacon Sounders
The AXL range of Combined Sounder Strobes are often used in burglar and fire alarm systems, office building, hospitals or airports. The sounders are equipped with 32 different tones, the signal tone is selected with a DIP switch and all versions are designed for a two-stage alarm. The strobe light is controlled via a separate connection terminal.
AC and DC versions Low current consumption Choice of 32 different signal tones Strobe lights 2 Stage Alarm Compact, robust and reliable AXL04 High volume up to 105 dB(A) 2 Joule Strobe light AXL05 High volume up to 112 dB(A) 2.5 Joule Strobe light AXL08 High volume up to 120 dB(A) 3.6 Joule Strobe light

Combined Beacon Sounder with Telephone Relay
The HPWL combined LED beacon sounder for continuous, warning or alarm signalling. The LED light is available in 2 different colors (yellow or redand the built-in ribbed transparent hood ensures extremely good light spreading. This combined beacon sounder is designed for indoor areas, but due to its IP55-rated enclosure, it can also be used in covered outdoor areas.
Protection degree IP 55 High lifetime thanks to LED technology Externally Selectable Electronic Signal Tones Excellent Signaling Effect 3 operating modes: continuous, blinking and flashing light selectable Available with Optional Integrated Telephone Relay
