| Aviation Obstruction Lights |
ICAO (International Civil Aviation Organisation) demands that aviation obstructions are marked using certified aviation obstruction lights. These FHF obstruction beacons meet those requirements. |
Skyline Gamma 1 - Aviation Obstruction LIght |
|
|
The Skyline Gamma 1 Aviation Obstruction Lights have been designed
for maintenance
free operation and an extremely high life
expectancy.
Available in 24v DC and
85 - 265v AC. The
LED's are vertically arranged and their
intensity (approx. 31 cd) clearly
surpasses the ICAO minimum requirement
of 10 cd without dazzling. The Gamma1 is mounted using a simple-to-install wall
bracket with 2 fastening points. In the
lower part of the obstruction light there is a terminal
room that can be opened unscrewing
3 screws, with an M20 cable gland.
The electrical connection is made using
a 2-pole terminal with a clamping capacity
of up to 2.5 mm2 (solid conductor). |
  |

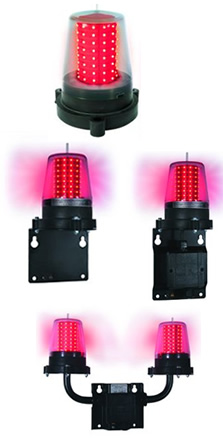

Skyline Alpha 1, 2, 3 & 4 - Aviation Obstruction LIghts |
|
| The Skyline Alpha Obstruction lights correspond
to ICAO Annex 14, Chapter 6, Table 6-3.
The Skyline Alpha beacons are designed for maintenance free
operation, and with LED's have an extremely
long lifetime.
4 models of aviation obstruction lights for different mounting situations and are available in voltages 24v DC and 115/230v AC. Skyline Alpha 1 is the standard version without additional fastening material and can be mounted on stationary surfaces. Skyline Alpha 2 is pre-mounted on a mounting bracket and equipped with a 1-metre cable. Skyline Alpha 3 is also equipped with a mounting bracket and has an additional connecting box for simple and economic installation. Skyline Alpha 4 is provided for installation on masts, or at places where double safety is required. This aviation obstacle light has two lamps premounted on a double arm and is easy to install by means of a connecting box. The version with redundancy circuit is also developed with two lamps. One of these lamps is only activated. In case of any fault, the second lamp starts automatically and a potential free contact is present to show this fault. |
 |
Skyline Beta - Obstruction LIght |
|
Obstacle light for nighttime marking of aviation and nautical obstacles |
  |
|
 |
